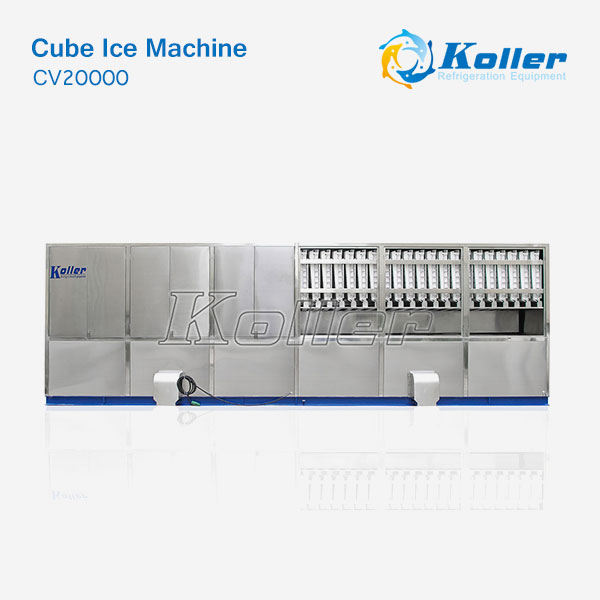

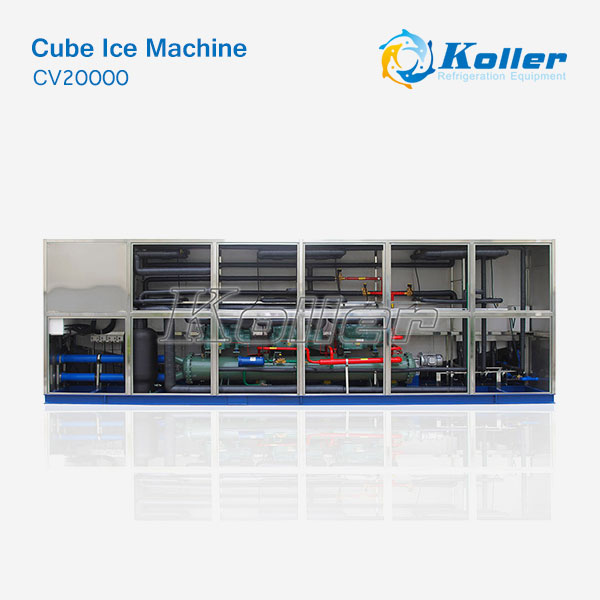

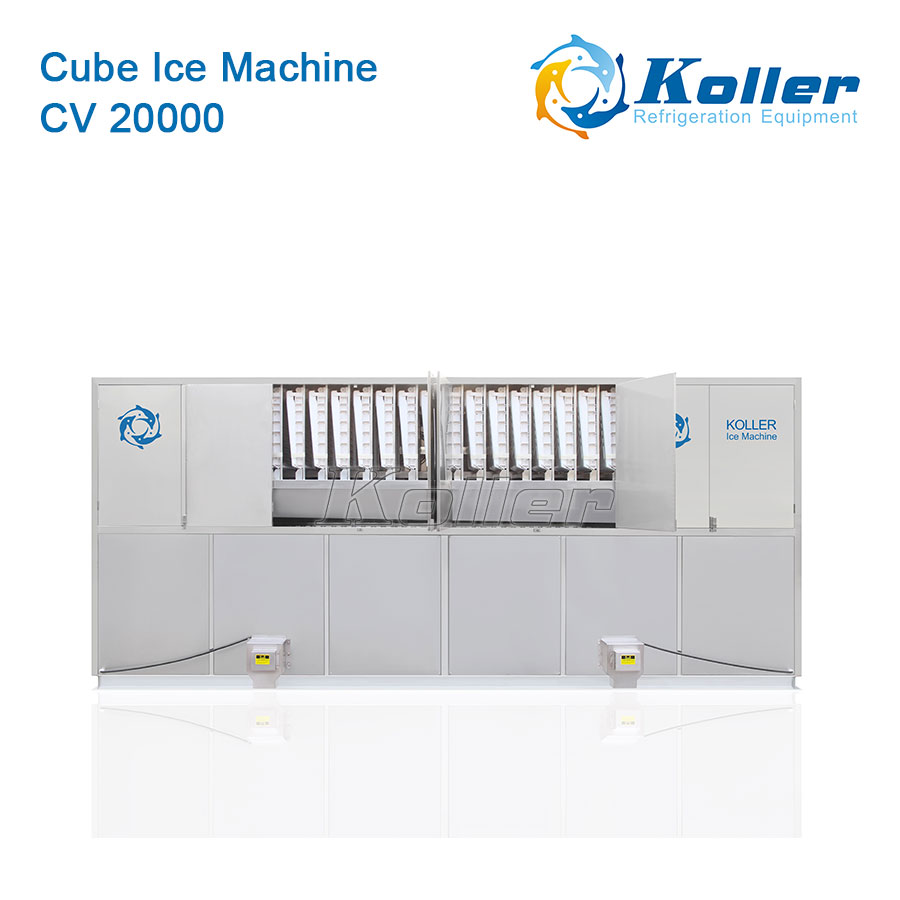

Cube Ice Machine CV20000 (20ton/day capacity)

Cube ice is widely used in hotels, restaurants, bars, banquet halls, fast food shops, chain stores, drink shops, and any other places where need cube ice to meet every customer’s needs.

Koller CV Series Ice Cube Machine Product Features:
Large Capacity: different capacity from 1ton/day to 25tons/day. Its production is stable and can reach 90%-95% even in summer.
Lower Power Consumption: it consumes 85-90 KWH/Ton, when the ambient temp is lower than23℃, it just consumes 70-85 KWH/Ton.
Automatic Operation: it adopts PLC program control, automatic starting and stopping.
Safe and Sanitary: it adopts food-grade stainless steel 304 material for the whole machine, special design water channel and ice discharge outlet, convenient automatic cleaning function.
Stable Performance: cube ice is is transparent, crystal, hard, regular, beautiful, sanitary, and completely meet the each national standard requirements for edible ice.
(CV1000, CV2000 and CV3000 can be designed water cooling system or air cooling system )

Trading Terms: FOB, CIF, CNF, EXW
Payment Terms: T/T by cash for offline orders.

◆ Refrigerant: R22/ R404A/ R507/ R449
◆ Supply Power: 380V~420V, 50Hz/60Hz, 3P; 220V~240V, 60Hz, 3P; 440V~480V, 60Hz, 3P;
◆ Working Conditions: Input Water Temp: 21℃; Evaporating Temp:- 15℃; Condensing Temp: 40℃;
(Notice: the actual ice production will be changed with input water temp and ambient temp.)
◆ Koller reserve the final explanation to the products technique parameter, model and specifications can be subject to change without notice.

INSTALLATION

◆ Video guidance support.

◆ Online guidance and telephone guidance support. (English, French, Spanish, Arabic and Japanese)

◆ Field installation, commissioning and training if needed.

MAINTENANCE

◆ Reply within 24hours.

◆ Online guidance and telephone guidance support.(English, French, Spanish, Arabic and Japanese)

◆ Free component in one year warranty.

◆ Field maintenance and repair service if needen.
