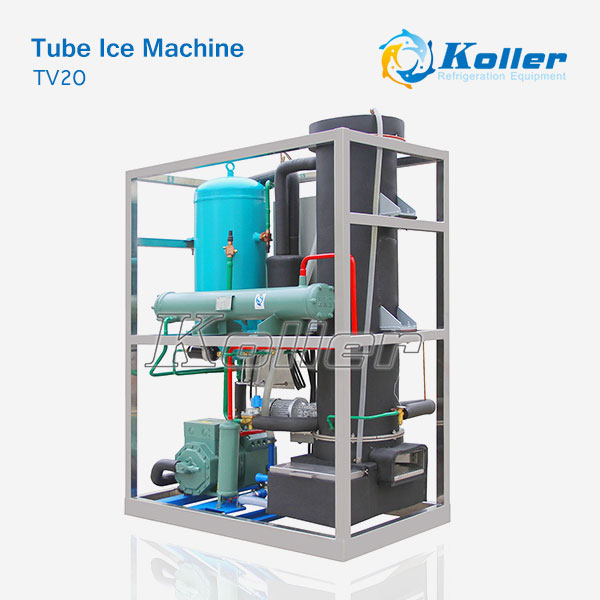

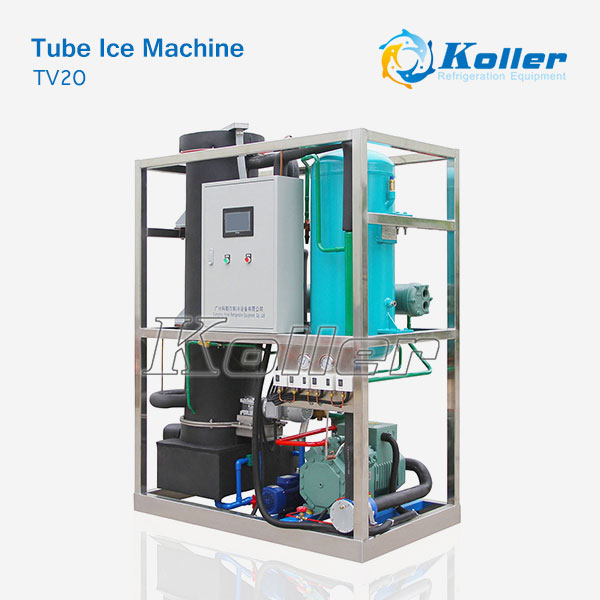

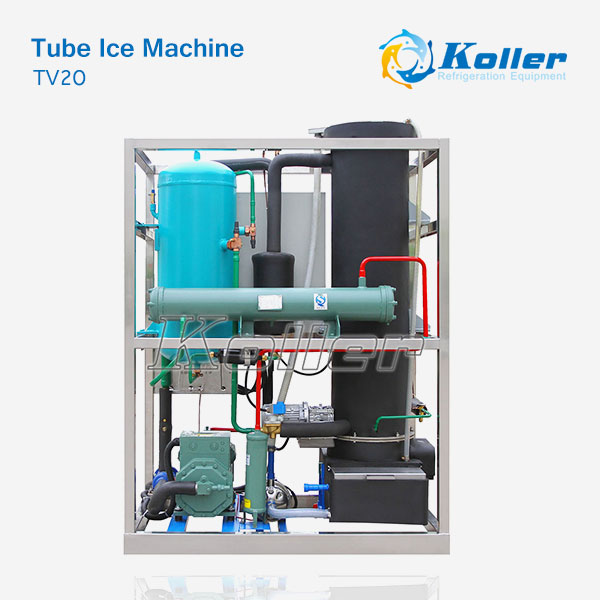

Tube Ice Machine TV20 (2 ton/day capacity)

Koller TV series tube ice machine is a type ice machine, which produces cylinder shape ice with a hole in the middle; it adopts flooded evaporator model, which improves ice making efficiency and capacity. Meanwhile, compact structure design can save installation space.

Ice thickness and hollow part size can be adjusted according to customer requirements. Under PLC program control system to work automatically, the machine has high capacity, low-power consumption and minimal maintenance.

Product Features

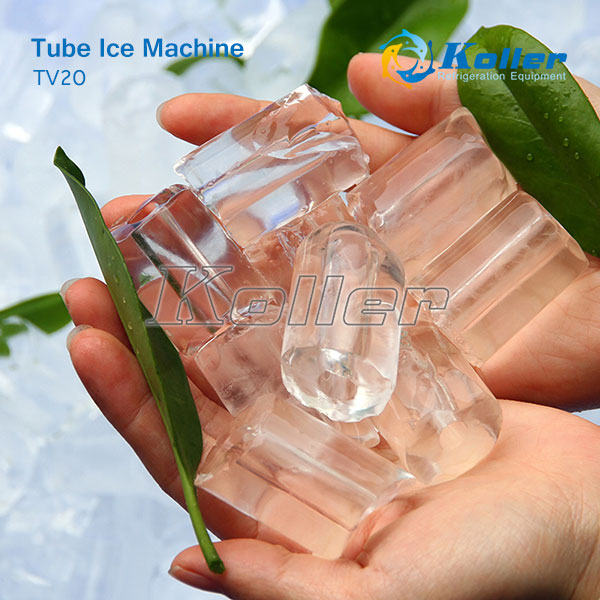

◆ The ice tube looks like hollow cylinder. Tube ice outer diameter is 20mm, 28mm, 34mm, 40mm; tube ice length: 30mm, 35mm, 40mm, 45mm, 50mm. The inner diameter can be adjusted according to the ice making time.Usually it’s between 5mm-10mm.

◆ The mainframe adopts SUS304 stainless steel. It can put the food directly into the production room which cover a small area, low production cost, high frozen efficiency, save energy, short installation period and easy to operate.

◆ The ice is quite thick and transparent, beautiful, long storage, not easy to melt, fine permeability.

◆ Main application: daily using, vegetable fresh-keeping, pelagic fishery fresh-keeping, chemical processing, building projects and other places need to use ice.

Trading Terms: FOB, CIF, CNF, EXW

Payment Terms: T/T, L/C, Western Union, MoneyGram, by cash for offline orders.

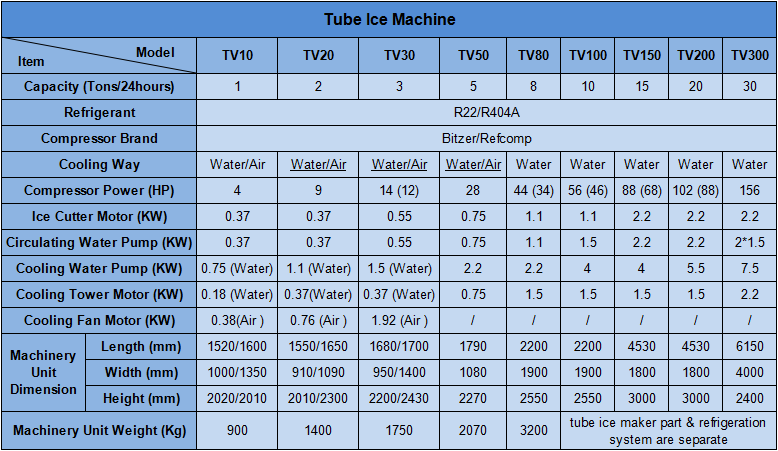

◆ Refrigerant: R22/R404A

◆ Supply Power: 380V~420V, 50Hz/60Hz, 3P; 220V~240V, 60Hz, 3P; 440V~480V, 60Hz, 3P;

◆ Working Conditions: Input Water Temp: 21℃; Evaporating Temp:- 15℃; Condensing Temp: 40℃;

(Notice: the actual ice production will be changed with input water temp and ambient temp.)

◆ Koller reserve the final explanation to the products technique parameter, model and specifications can be subject to change without notice.

INSTALLATION

◆ Video guidance support.

◆ Online guidance and telephone guidance support. (English, French, Spanish, Arabic and Japanese)

◆ Field installation, commissioning and training if needed.

MAINTENANCE

◆ Reply within 24hours.

◆ Online guidance and telephone guidance support.(English, French, Spanish, Arabic and Japanese)

◆ Free component in one year warranty.

◆ Field maintenance and repair service if needen.
