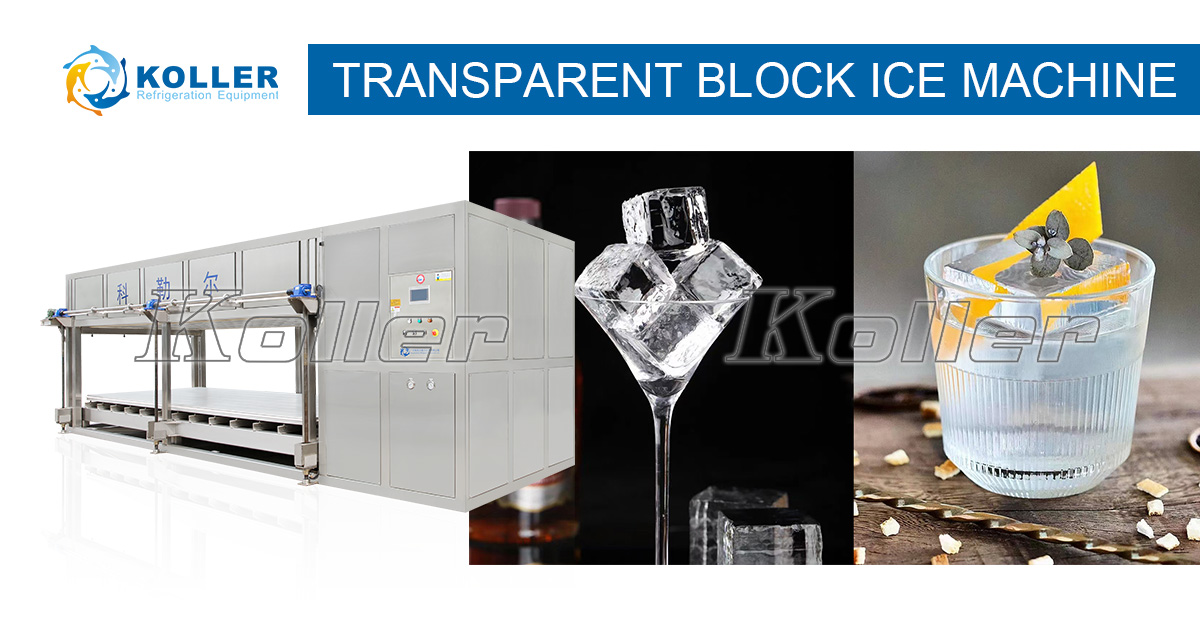

DIRECT-COOLING TRANSPARENT BLOCK ICE MACHINE TB10 (1 TON PER BATCH)

Koller Direc-cooling Transparent Ice Block Machine TB10 can produce 1000KG transparent ice block per batch. As it uses a small capacity refrigeration unit, the ice freeze slowly so can be 100% transparent. Besides, the small capacity refrigeration unit can save energy consumption for you!

By adopting food-grade Aluminum moulds, the transparent ice blocks produced by Koller TB10 is very clean, edible and sanitary for human consumption, no harm on health.

Product Features

◆ Slow ice freezing, the ice can be 100% transparent.

◆ Short and fast ice freezing time.

◆ Sanitary, clean and edible ice blocks.

◆ Auto water adding, ice making and ice harvest.

◆ No need salt water.

◆ Food-grade aluminium ice moulds, anti-rust and anti-corrosive;

◆  Aluminium ice moulds assembled without welding. Will not deform or affect ice harvest;

◆  Ice bed can be movable or motor driven.

◆  Using a motor-driven automatic screw rod lifting system.

◆ Compact structure design, can save installation space and shipping costs for you;

◆ Perfect and special water-lock technology.

◆  Very strong framework, not easy to deform;

◆  7 Patents.

Trading Terms: EXW, FOB, CNF, CIF

Payment Terms: T/T, L/C, Western Union, MoneyGram, by cash for offline orders.

◆ Refrigerant: R22/R404A/R507

◆ Supply Power: 380V~420V, 50Hz/60Hz, 3P; 220V~240V, 60Hz, 3P; 440V~480V, 60Hz, 3P;

◆ Working Conditions: Input Water Temp: 21℃; Evaporating Temp:- 15℃; Condensing Temp: 40℃;

(Notice: the actual ice production will be changed with input water temp and ambient temp.)

◆ Koller reserve the final explanation to the products technique parameter, model and specifications can be subject to change without notice.

INSTALLATION

◆ Video guidance support.

◆ Online guidance and telephone guidance support. (English, French, Spanish, Arabic and Japanese)

◆ Field installation, commissioning and training if needed.

MAINTENANCE

◆ Reply within 24hours.

◆ Online guidance and telephone guidance support.(English, French, Spanish, Arabic and Japanese)

◆ Free component in one year warranty.

◆ Field maintenance and repair service if needen.
