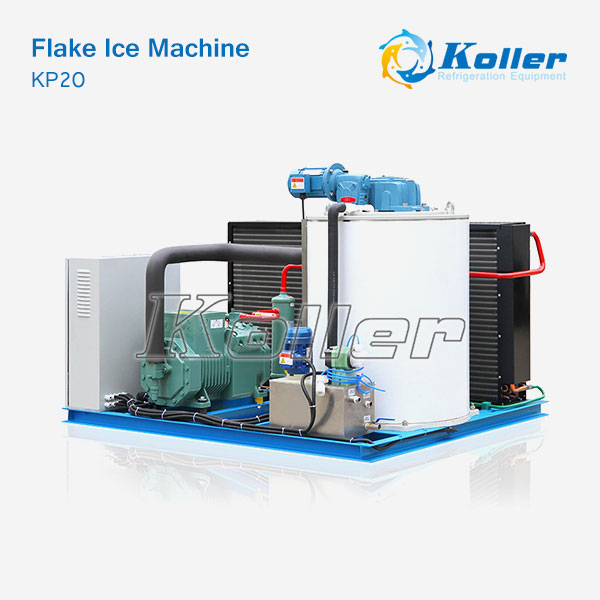

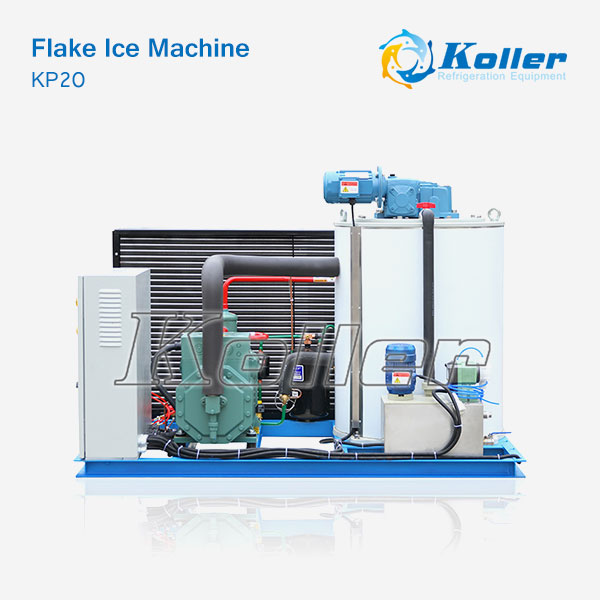

Flake Ice Machine KP20 (2 ton/day capacity)

Koller small series flake ice machine is widely used in the supermarket and seafood restaurant to keep the food fresh such as fish, meat and chicken, etc.

Product Features
High-efficient heat transfer and low power consumption.
Use PLC control system, with kinds of fault protection.
Machine running stably with less faults, long lifetime.
Use stainless steel 304 or carbon steel chrome for the evaporator drum.

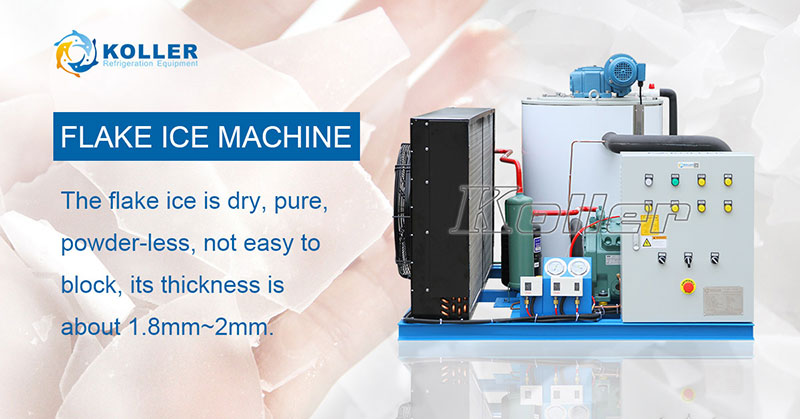

Flake ice: dry, pure, powder-less, not easy to block, its thickness is about 1.8mm~2mm, without edges or corners which will protect the food during the processing period.

Application: refreshing vegetable, fruit, foodstuff in supermarket; blast cooling for processing of fishery products and butchery; cooling process in fermentation, dairy production; chemical dyes; cooling in concrete and mining.

Trading Terms: FOB, CIF, CNF, EXW
Payment Terms: T/T, by cash for offline orders.

◆ Refrigerant: R22/ R404A/ R507/ R449
◆ Supply Power: 380V~420V, 50Hz/60Hz, 3P; 220V~240V, 60Hz, 3P; 440V~480V, 60Hz, 3P;
◆ Working Conditions: Input Water Temp: 21℃; Ambient Temp: 25℃; Evaporator temp: -20℃; Condensing temp: 40℃.
(Notice: the actual ice production will be changed with input water temp and ambient temp.)
◆ Koller reserve the final explanation to the products technique parameter, model and specifications can be subject to change without notice.

INSTALLATION

◆ Video guidance support.

◆ Online guidance and telephone guidance support. (English, French, Spanish, Arabic and Japanese)

◆ Field installation, commissioning and training if needed.

MAINTENANCE

◆ Reply within 24hours.

◆ Online guidance and telephone guidance support.(English, French, Spanish, Arabic and Japanese)

◆ Free component in one year warranty.

◆ Field maintenance and repair service if needen.
