Cube ice is widely used in hotels, restaurants, bars, banquet halls, fast food shops, chain stores, drink shops, and any other places where need cube ice to meet every customer’s needs.
Koller CV Series Ice Cube Machine Product Features: Large Capacity: different capacity from 1ton/day to 25tons/day. Its production is stable and can reach 90%-95% even in summer. Lower Power Consumption: it consumes 85-90 KWH/Ton, when the ambient temp is lower than23℃, it just consumes 70-85 KWH/Ton. Automatic Operation: it adopts PLC program control, automatic starting and stopping. Safe and Sanitary: it adopts food-grade stainless steel 304 material for the whole machine, special design water channel and ice discharge outlet, convenient automatic cleaning function. Stable Performance: cube ice is is transparent, crystal, hard, regular, beautiful, sanitary, and completely meet the each national standard requirements for edible ice. (CV1000, CV2000 and CV3000 can be designed water cooling system or air cooling system )
Trading Terms: FOB, CIF, CNF, EXW Payment Terms: T/T, L/C, Western Union, MoneyGram, by cash for offline orders.

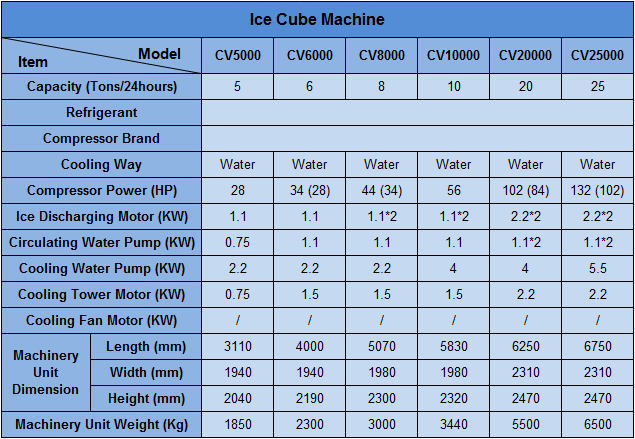

Technical Parameters
◆ Refrigerant: R22/R404A ◆ Supply Power: 380V~420V, 50Hz/60Hz, 3P; 220V~240V, 60Hz, 3P; 440V~480V, 60Hz, 3P; ◆ Working Conditions: Input Water Temp: 21℃; Evaporating Temp:- 15℃; Condensing Temp: 40℃; (Notice: the actual ice production will be changed with input water temp and ambient temp.) ◆ Koller reserve the final explanation to the products technique parameter, model and specifications can be subject to change without notice.
Pictures
After-sales Service
INSTALLATION
◆ Video guidance support.
◆ Online guidance and telephone guidance support. (English, French, Spanish, Arabic and Japanese)
◆ Field installation, commissioning and training if needed.
MAINTENANCE
◆ Reply within 24hours.
◆ Online guidance and telephone guidance support.(English, French, Spanish, Arabic and Japanese)
A: there are 2 types of ice cube size in our factory: one is 22*22*22 which needs 20 minutes to be frozen well; the other is 29*29*22 which needs 23 minutes to be frozen well. The freezing time will be different because of the weather. In summer it will be longer; while in winter the freezing time will be less
